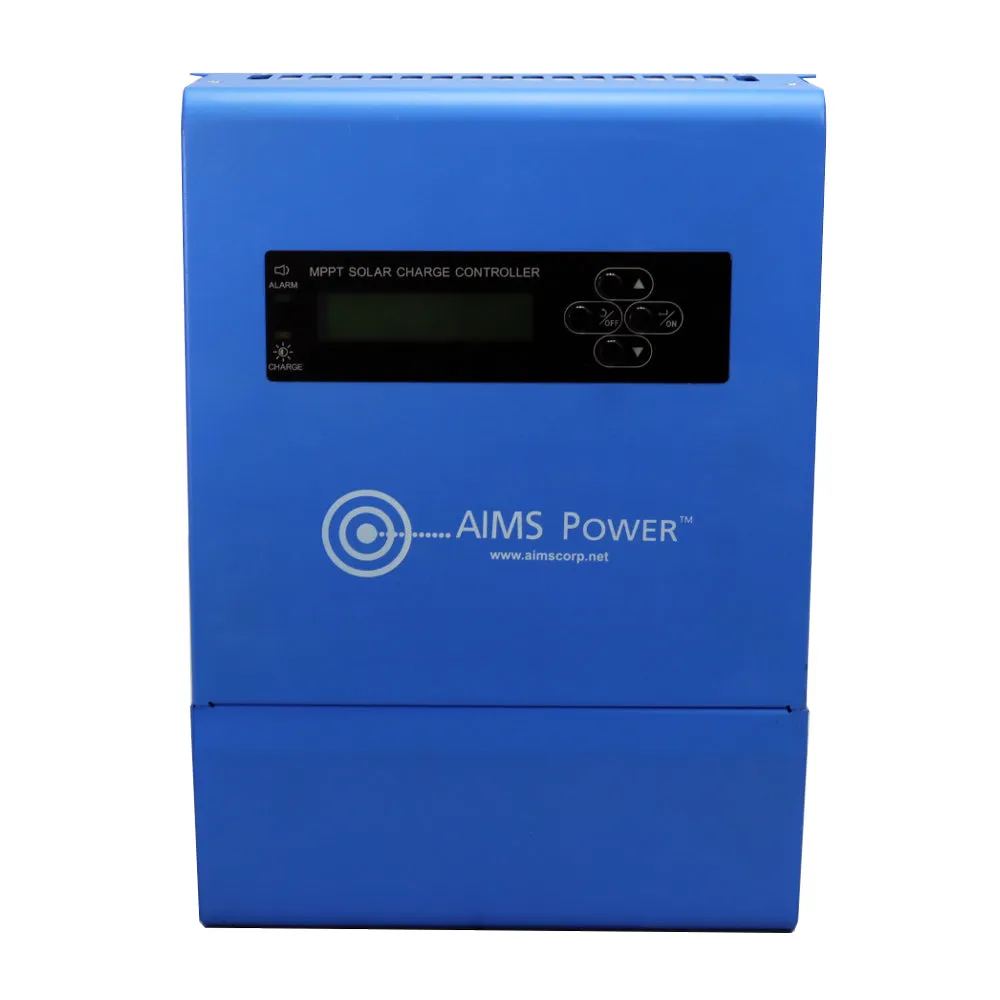

Enhance your solar system with the AIMS Power Solar Battery Charge Controller, now available at Appliance Guys. This advanced controller features a smart tracking algorithm and MPPT charging technology, ensuring efficiency between 97.5-99% and maximizing energy harvest. It automatically adjusts to weather conditions and includes temperature compensation protection via a battery temperature sensor. Suitable for 12, 24, 36, and 48-volt solar systems, it comes with LED indicators, an LCD display for key data, and user-customizable settings. Its rugged design, marine coating, and multiple protections make it ideal for extreme conditions.
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
- MPPT Technology: Maximizes power from PV array to battery bank, achieving peak power of the I-V curve.
- Efficient Cooling: Quality heatsink design eliminates the need for fans and avoids thermal derating.
- Versatile Charging: Supports gel, sealed, AGM, flooded, lithium, and user-defined battery types with adjustable voltage.
- Multistage Charging: 4-stage charging process includes bulk, absorption, float, and equalize.
- Monitoring Options: RS485 port allows computer monitoring of all controller functions.
- Stackable Design: Allows for easy expansion of your solar power system.
- Reliable Electronics: Over-engineered components generate less heat, ensuring durability.
- Optimal Efficiency: Up to 99% efficiency ensures maximum energy conversion.
- Low Self Consumption: Consumes less than 4 watts in standby mode.
- Comprehensive Protections: Overload, short circuit, high and low voltage, high temperature, and auto correct protections.
- Rugged Construction: Thermal design rugged case is built for extreme conditions.
- Certifications: CE, ETL to UL1741, RoHS, CETL compliant for quality assurance.
- Marine Coated: Conformal coating for marine environments.

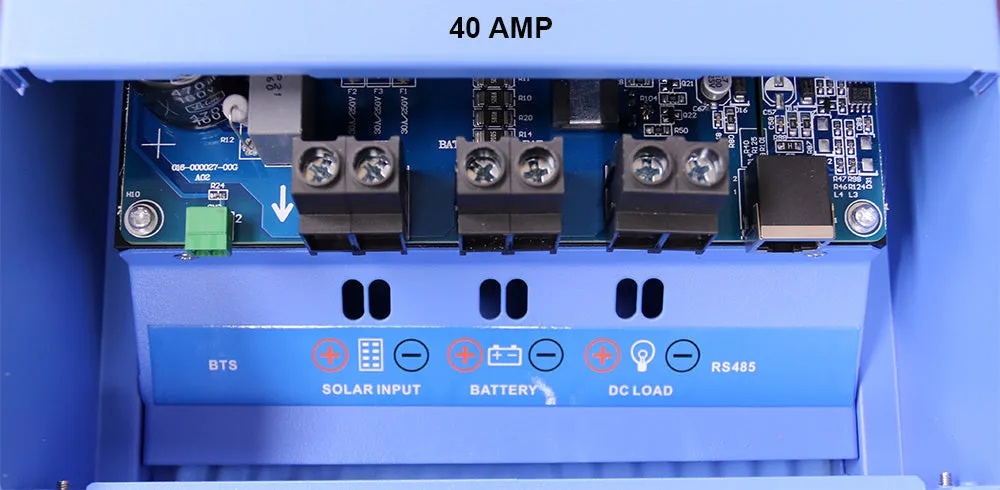

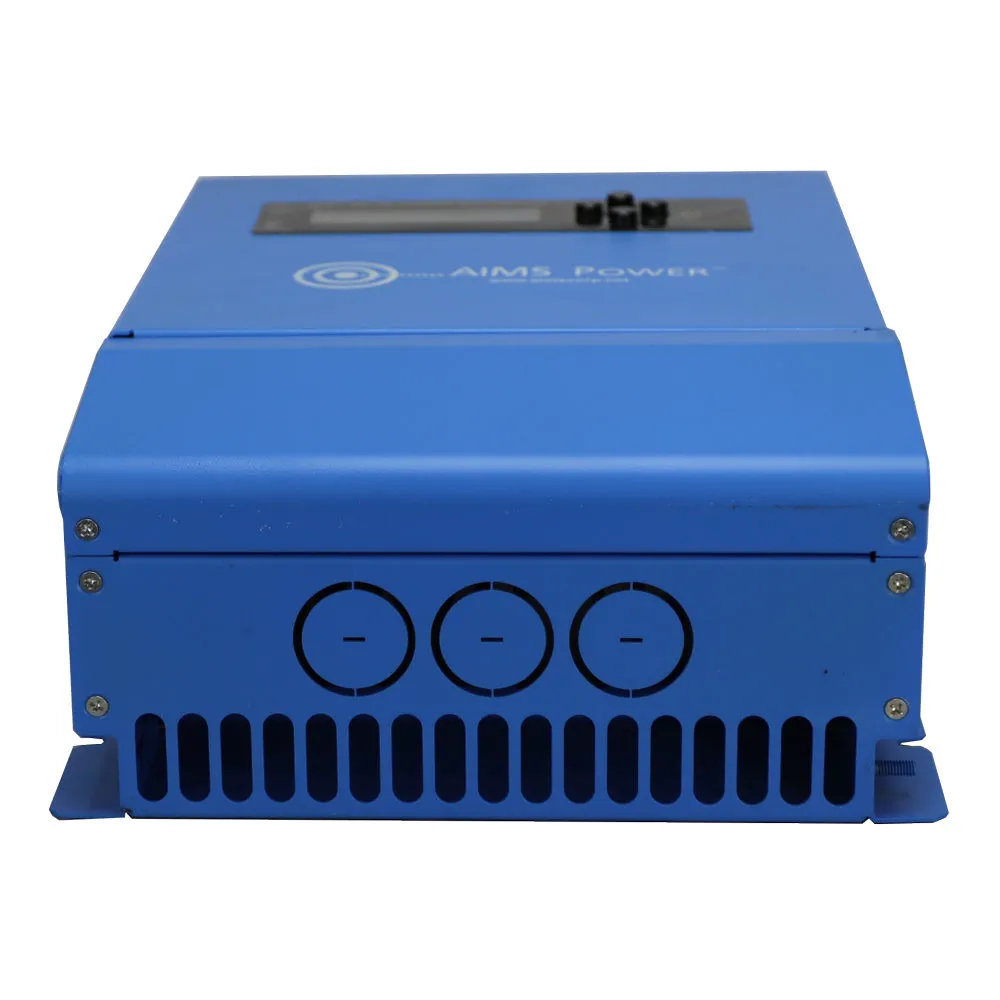

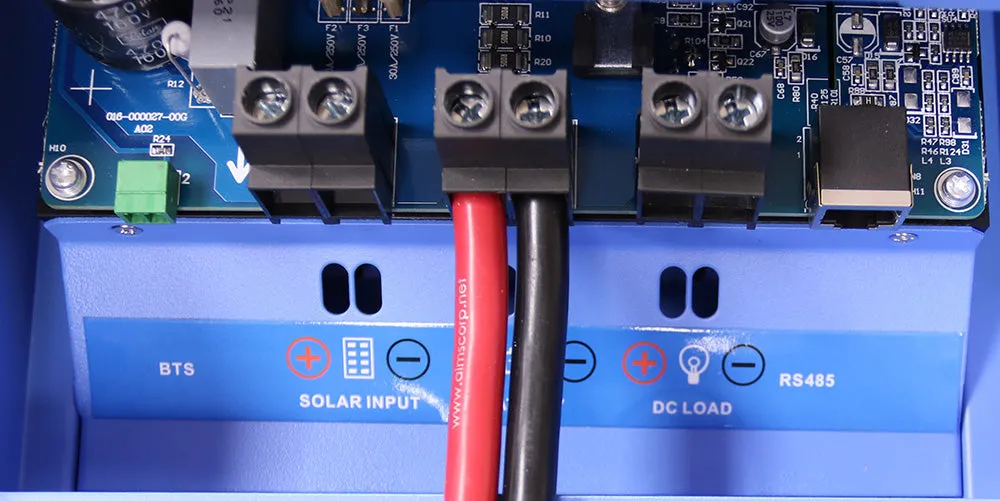

- User-Friendly Design: Mounting holes and wire knockouts for easy installation.
Specifications
Electrical Specifications:
- PV Operating Voltage: 15-150Vdc@12V, 34-150Vdc@24V, 50-150Vdc@36V, 60-150Vdc@48V
- Rated PV Input: 12V – 500 Watts, 24V – 1000 Watts, 36V – 1500 Watts, 48V – 2000 Watts
- Maximum Battery Current: 40 Amps
- DC Load Port: 40 Amps
- Max PV Open Circuit Voltage: 150Vdc
- Self Power Consumption: <4 Watts
- Efficiency: 97.5%
- Protections: Overload, short circuit, high voltage, high temperature, low voltage, and auto correct
- Monitoring: RS485 port for computer monitoring
Charging Specifications:
- Battery Types: Gel, sealed, AGM, flooded, lithium, user-defined (adjustable voltage)
- 4 Stage Charging: Bulk, absorption, float, and equalize
- Bulk Charge Voltage: Sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user-defined 10-15V
- Float Charge Voltage: Sealed/AGM/gel 13.7V, flooded 13.6V, user-defined 10-15V
- Equalize Charge Voltage: Sealed 14.6V, AGM/gel 14.8V, flooded 14.8V, user-defined 10-15V
- Low Voltage Reconnection: 12.5V
- Low Voltage Disconnect Voltage: 10.5V (10.5-12.5V adjustable)
Mechanical Specifications:
- Enclosure: IP43 protection, metal
- Cooling: Heatsink
- Humidity: 100% non-condensing
- Temperature Compensation: -5mV⁰C / 2V with BTS
- Temperature Range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
- Conformal Coated: Yes, for marine environments
- Wire Knockouts: 1.25”
- Unit Weight: 8 lbs
- Boxed Weight: 9 lbs
- Dimensions: 10.6”L x 7.25”W x 3.5”H
- Warranty: 2 years
- Certifications: ETL to UL1741, CE, RoHS, CETL
