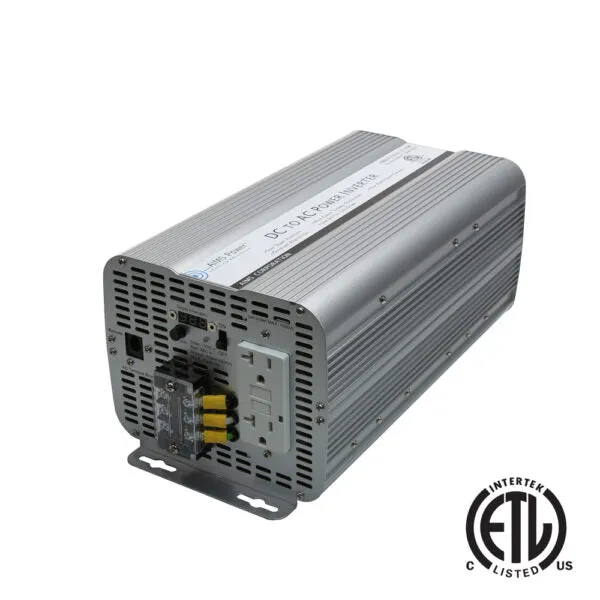

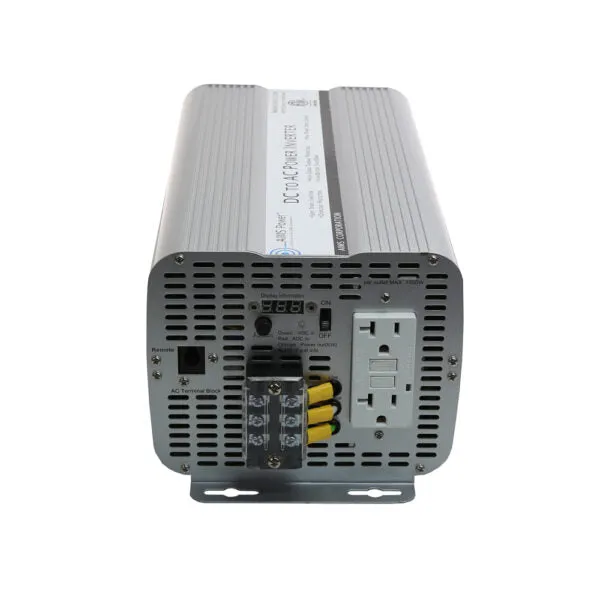

Introducing the 3000 Watt Modified Sine Inverter from AIMS Power, now available for purchase on Appliance Guys. This ETL Listed unit conforms to UL 458 Standards and CSA Standard C22.2 No. 107.1-01. It features a 20 amp GFCI outlet and a direct connect AC terminal block, delivering the full 3000 watts to a single source. The compact, lightweight design is ideal for back-up power systems for homes, boats, cabins, solar, vehicle outfitters, and other applications requiring a UL 458 listing. AIMS Power also offers this high-quality inverter in 2000 and 3600 watt sizes.
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
- 3000W max continuous power
- Modified sine wave
- Digital Display
- LED Monitoring Lights
- Dual GFCI Outlet
- AC Direct connect terminal block
- Over Temperature protection
- Over Load protection
- Thermal Cooling fan operation
- Internally fuse protected
- AC output short circuit protection
- Aluminum case for optimal cooling
- Pre-slotted mounting plate
- Instruction manual
- Free tech support
- 2 Year Warranty Parts and Labor
- ETL Listed to UL 458 Standards and CSA 22.2
Specifications
Specifications
Here are the complete, neat, and precise specifications of the product, grouped by functionality:
Power and Efficiency:
- Continuous output power: 3000 Watts
- Surge power capability (peak power): 6000 Watts
- DC input / operating voltage: 10 to 15 Volts
- Output voltage: 120 Volts AC
- Output frequency: 60 Hz /1 .5 Hz
- Efficiency: 90%
- No load draw: <1.4A
- AC amps: 30
- DC amps: 300
Voltage and Temperature Control:
- Battery low voltage alarm: 10.5 /- 0.5 Volts
- Battery low voltage shutdown: 10.0 /- 0.5 V
- High input voltage protection: 15V
- Low input voltage shutdown: 10V
- No load minimum operating temperature: 25 degrees Fahrenheit
- Full load maximum operating temperature: 140 degrees Fahrenheit (automatic shutdown)
Additional Features:
- AC Output Socket Type: Dual GFCI and AC direct connect terminal
- Internal fuse protection
- ETL Listed to UL458 Standards – CSA 22.2
Dimensions
Dimensions:
- Length: 14.5"
- Width: 6.62"
- Height: 5.6"
Weight:
- Unit Weight: 8.38 lbs
- Boxed Weight: 12 lbs
