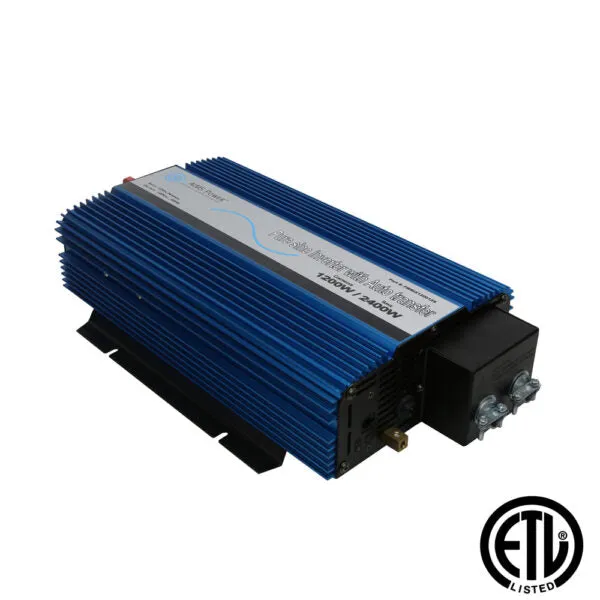

Introducing the 1200 Pure Sine Inverter with Transfer Switch, now available on Appliance Guys. This ETL Certified inverter conforms to UL 458 standards and is perfect for powering built-in RV refrigerators, microwaves, coffee pots, and other appliances. It seamlessly switches between shore power and battery power, providing a convenient solution for RV’ers and mobile businesses. One of its standout features is its ability to pass the High Voltage Dielectric Withstand Test, or Hi-Pot Test, ensuring safety and reliability. Experience the ease of installation and the versatility of this Aims power inverter today.
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
- Pure sine
- Conforms to UL458

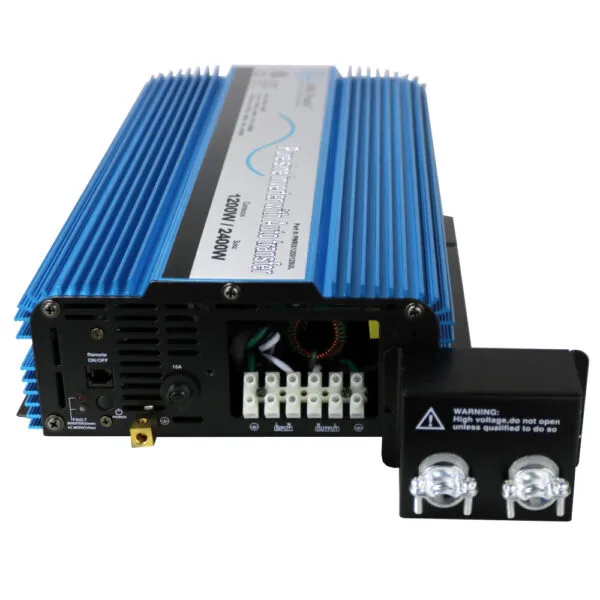

- Hard wire direct connect terminal block
- 1200 watt continuous power
- 2400 watt surge
- Bypass when the inverter is off or on
- Over voltage shutdown
- Under voltage shutdown
- Intelligent cooling fan
- Automatic transfer switch 10 amps
- Conformal coated for marine applications
- Remote switch available
- Less than 20msec typical transfer time
- 2 year warranty
Specifications
Specifications
- Power: 1200 watts
- Surge Power: 2400 watts
- Efficiency: 86-90%
- DC input voltage: 10-16V
- AC input voltage: 120VAC /-10%
- Output voltage: 120VAC, 60HZ
- Over voltage shutdown: 16VDC /- .5V
- Under voltage shutdown: 10VDC /- .5V
- Under voltage alarm: 10.3VDC /- .3V
- Over temp protection: 150 degrees F /- 5 degrees F
- Bypass/throughput: 10 amps. Do not exceed, damage may occur and void warranty.
- Built in transfer switch: 10 amp transfer
- Thermal fan
- Pure Sine output
- No load current: 1.2A
Dimensions & Weight
Dimensions & Weight
- Length: 17.25 inches
- Width: 9.5 inches
- Height: 3.8 inches
- Unit Weight: 10.2 lbs
- Boxed Weight: 13 lbs
