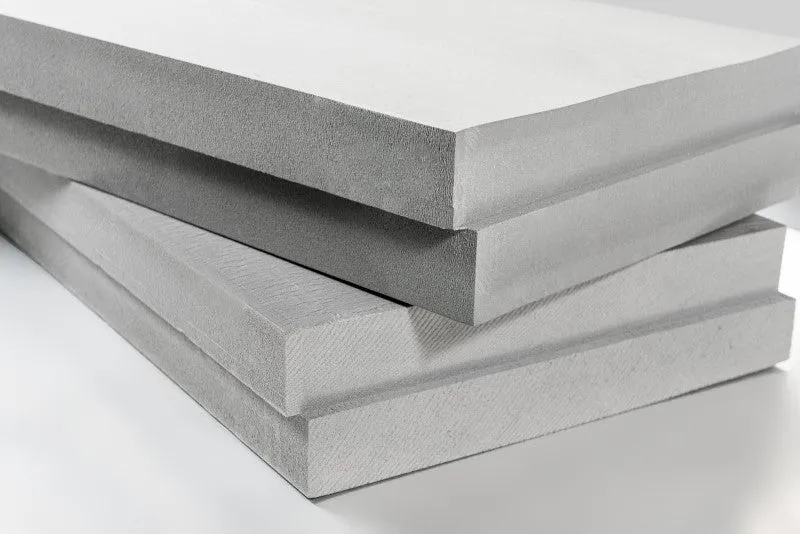

Ravatherm XPS X 300 SL is a flame retarded extruded polystyrene with exceptional lambda insulation performance and a Global Warming Potential (GWP) of less than five. It has attained a coveted Green Guide Rating A by BREEAM, and continues to enable the construction of energy efficient buildings.
Ravatherm XPS X 300 SL is a high-performance, multi-purpose polystyrene for the thermal insulation and frost protection of inverted flat roofs, green and blue roofs.
It is manufactured by an extrusion process which results in homogeneous, closed-cell material structure and smooth surface skin (extrusion skin) which has many favourable material characteristics.
- Excellent thermal insulation capability
- Cost efficient solution

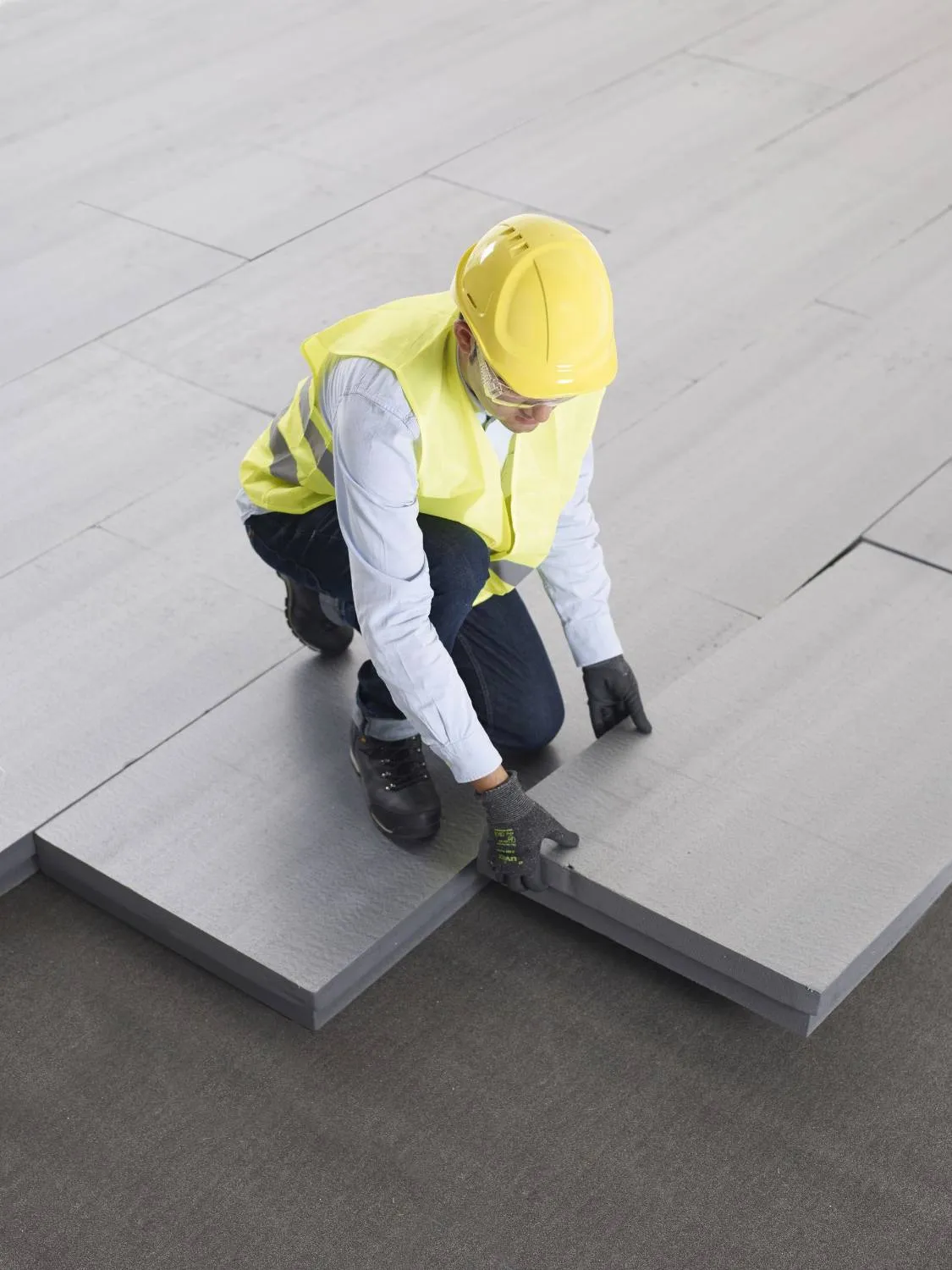

- Simple installation
- Waterproof, negligible moisture uptake
- Environmental friendly
- High compressive strength
- Energy saving
- Resistent to high loads
Thickness: 180mm
Length: 1250mm
Width: 600mm
Quantity: 2 sheets
Coverage: 1.5m²
Thermal conductivity: 0.030 W/mK
Compressive Strength (@ 10% deformation): 300 kPa
Water vapour diffusion resistance factor: 100μ
Fire Performance: Euroclass E
Applications:
Ravatherm XPS X 300 SB is excellent for thermal insulation in:
- Inverted roofs
- Green roofs
- Roof terraces
- Car park decks
